Building LLM from Scratch

Dataset

Dataset chosen - Julius Caesar text. Link

Train the LLM with the dataset

Setting up the training

def train_model_simple(model, train_loader, val_loader, optimizer, device, num_epochs,eval_freq, eval_iter, start_context, tokenizer):
    # Initialize lists to track losses and tokens seen
    train_losses, val_losses, track_tokens_seen = [], [], []
    tokens_seen, global_step = 0, -1

    # Main training loop
    for epoch in range(num_epochs):
        model.train()  # Set model to training mode

        for input_batch, target_batch in train_loader:
            optimizer.zero_grad() # Reset loss gradients from previous batch iteration
            loss = calc_loss_batch(input_batch, target_batch, model, device)
            loss.backward() # Calculate loss gradients
            optimizer.step() # Update model weights using loss gradients
            tokens_seen += input_batch.numel() # Returns the total number of elements (or tokens) in the input_batch.
            global_step += 1

            # Optional evaluation step
            if global_step % eval_freq == 0:
                train_loss, val_loss = evaluate_model(
                    model, train_loader, val_loader, device, eval_iter)
                train_losses.append(train_loss)
                val_losses.append(val_loss)
                track_tokens_seen.append(tokens_seen)
                print(f"Ep {epoch+1} (Step {global_step:06d}): "
                      f"Train loss {train_loss:.3f}, Val loss {val_loss:.3f}")

        # Print a sample text after each epoch
        generate_and_print_sample(
            model, tokenizer, device, start_context
        )

    return train_losses, val_losses, track_tokens_seen

Training the model

import time
start_time = time.time()

torch.manual_seed(123)
model = GPTModel(GPT_CONFIG_124M)
model.to(device)
optimizer = torch.optim.AdamW(model.parameters(), lr=0.0004, weight_decay=0.1) #A

num_epochs =50
train_losses, val_losses, tokens_seen = train_model_simple(
    model, train_loader, val_loader, optimizer, device,
    num_epochs=num_epochs, eval_freq=5, eval_iter=1,
    start_context="He said we came here", tokenizer=tokenizer
)

end_time = time.time()
execution_time_minutes = (end_time - start_time) / 60
print(f"Training completed in {execution_time_minutes:.2f} minutes.")
>>> Training completed in 13.78 minutes.

Baseline results

Model configuration

learning rate = 1e-4
max iters = 10000
warmup steps = 2000
min lr = 5e-4
eval iters = 500
batch size = 8
block size = 128
vocab size=50257
block size=128
number of layers=4
number of heads=4
embedding dimension=768
dropout=0.01
bias=True

Model files

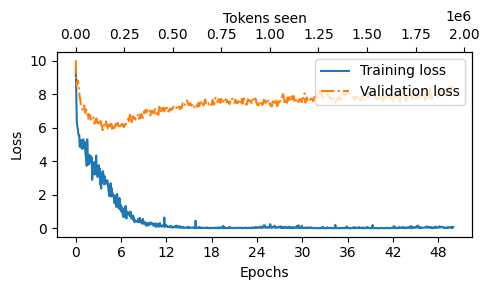

Training vs Validation Loss

Epoch : 10,000

Inference output

Input text : “Friends, Romans, countrymen” Output text :

Friend, Romans, countrymen tyrant. Sh Shall slaves, Then leave their made. Shall I noounds, Most noble Caesar, eries. Stir not resolved, I can o’ersway him, weep for I please him come to pieces! Here:

CASSIUS. I know not think it is but a noble Roman, That himKnow I these fires, why all this._]

Why obscurely prey: theirFly, why, this conspirators. You shall sober form of heralds to astonish us.

CASSIUS. You are dull, Casca; and those sparks of life That should be in a Roman you do want, Or else you use not. You look pale and gaze, And put on fear and cast yourself in wonder, To see the strange impatience of the Heavens: But if you would consider the true cause Why all these fires,

Training & validation loss analysis for changing epochs

Epoch : 500

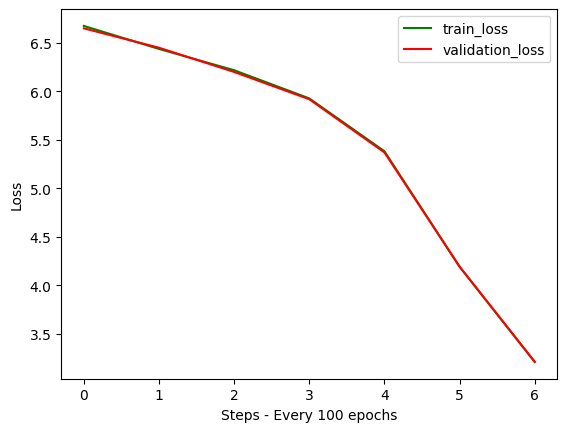

Epoch : 4000

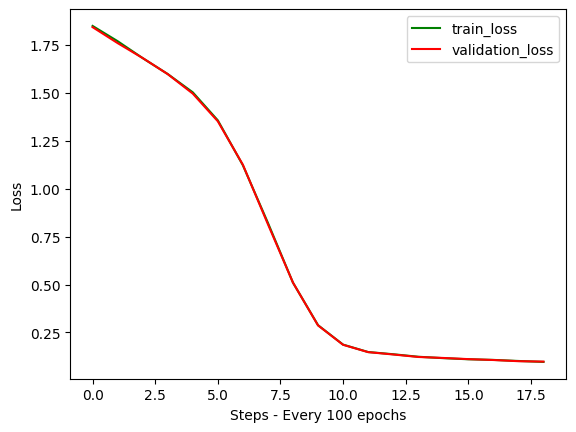

Epoch : 10,000

Epoch : 20,000

Training & validation loss analysis for changing learning rates

Epoch : 10,000, learning rate = 1e-4

Inference output

Input text : “Friends, Romans, countrymen” Output text :

CASSIUS. I know not think it is but a noble Roman, That himKnow I these fires, why all this._]

Why obscurely prey: theirFly, why, this conspirators. You shall sober form of heralds to astonish us.

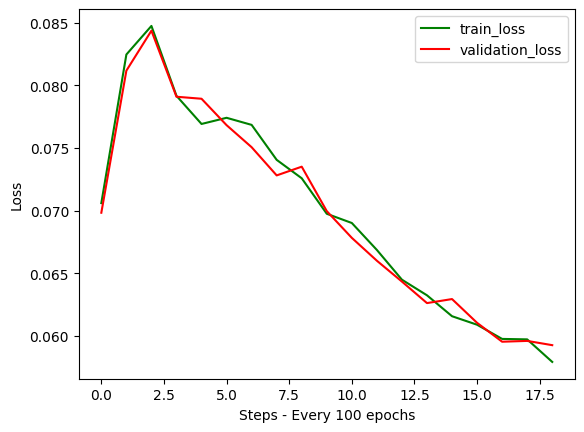

Epoch : 10,000, learning rate = 1e-3

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen, And this, The unaccustom’d ope their hearts. It is rage, That unvious Casca or And will But when he was no fellow?

BRUTUS. You; OCTAVI know, As dear abide my right well as you these grief, Whereinna, As last of him better of this very strong; IUS. Rushing on me, should be not know you? I will please him; PINDAR. What do know you could not, As they do use and keep’d of women; But keep that which is a fall, Nor for justice? A man fell. O, coward or a chants. Thou thrice: Let’d How offer’d, as when Even so appearing to his wife to me, Who, then, as he was a time him

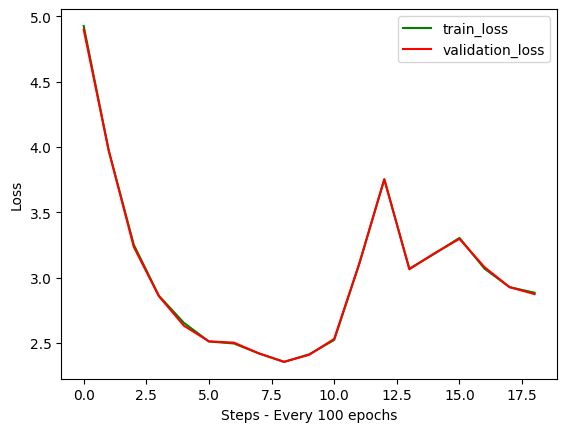

Epoch : 10,000, learning rate = 1e-2

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen my legions:

I have to know of some talk more than you are not. It which we are; is paid in the world at a There by you of Philippi.

Who you have you demand. Do;

I hope It,

Else who you shall say you by this? I have removed, including Or) not” or forth by following which you have removed, this work the permission and you comply, the Project Gutenberg™ License included through this night; What. Do, you shall have citizen upon the market-place; are save, fates with the manager of earth render him, displayed, for fates with this work in many hearts, much you provide a king;

forth, perform”

For You may become the work from him to other work for someone to sleep’d them Why he which“Break up. There is for someone to hear. If you know of men

Training & validation loss analysis for changing number of layers

Epoch : 10,000 ; learning rate = 1e-4 ; number of layers = 4

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen tyrant. Sh Shall slaves, Then leave their made. Shall I noounds, Most noble Caesar, eries. Stir not resolved, I can o’ersway him, weep for I please him come to pieces! Here:

CASSIUS. I know not think it is but a noble Roman, That himKnow I these fires, why all this._]

Why obscurely prey: theirFly, why, this conspirators. You shall sober form of heralds to astonish us.

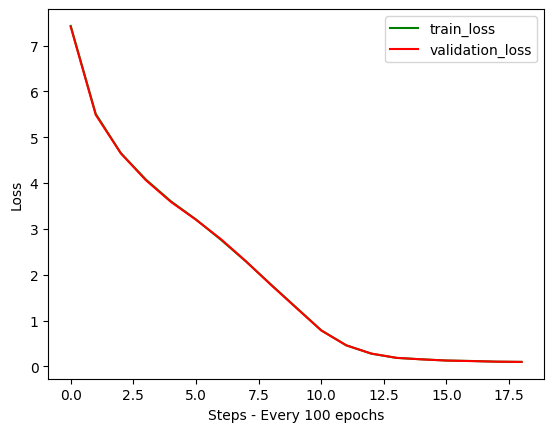

Epoch : 10,000 ; learning rate = 1e-4 ; number of layers = 1

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen

HereHis ’BER creditrousED, To held the body, defect in hisopt hands, with the law of and official page at required to maintaining tax treatment of donations fromwith the souls, and those impatience of the PG search our; TITINIUS. MESSALA. Will you go see you harm spark, And Shakespeare I

elect to provide, in pit, let me.

CASSIUS. And let us swear our resolution.

BRUTUS. No, not an office for a fray, And so, I will strive with the have things impossible, Yea, get the better of the better of them.

BRUTUS. A piece of work that will make sick men whole.

LIGARIUS. But are not some whole that we must make sick?

BRUTUS. That must we

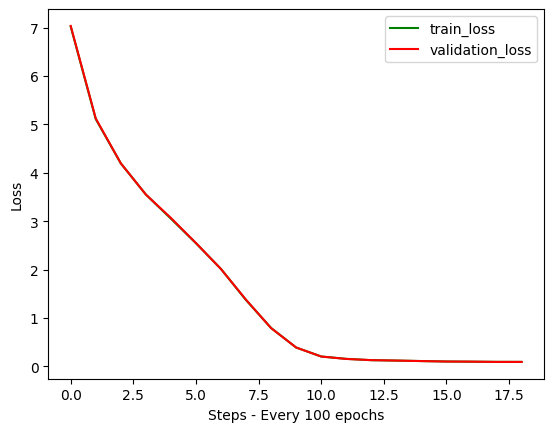

Epoch : 10,000 ; learning rate = 1e-4 ; number of layers = 3

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen Project Gutenberg mission of Project Gutenberg Archman you Live a soldier, Thespeechless prisoner.

ANTONY. Greek. • You provide, in accordance with paragraph 1.F.3, a full refund of distribution of or providing • You provide, in accordance with paragraph 1.F.3, a full refund of any money paid for a work or a replacement copy, if a defect in the works. • You comply with all other terms of thisigg rejoice? BUT NOT • You comply, receipt of the work. • You comply with all other terms of this agreement for free distribution of Project Gutenberg™ works.

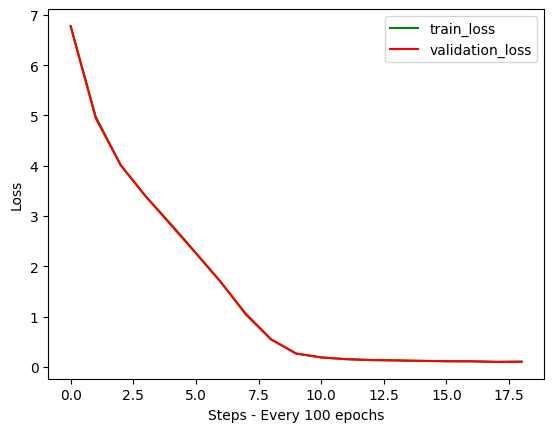

Epoch : 10,000 ; learning rate = 1e-4 ; number of layers = 5

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen,— Which appear, off cried, minds stay’d to poor Brutus, ber, orearilius, Not littleKnow you depart, as you received the strength of others.

BRUTUS. Therein our letters, do not well agree. Mine speak of seventy Senators that died By their proscriptions, Cicero being one.

CASSIUS. Cicero one!

C improve them, may: Then lest that the day break here womanish speaksby CASCA. Indeed, they say the senators tomorrow MeusFUN neigh, and dying men did incertain to establish Caesar My format withfrom even into the Project Gutenberg™ omes Caesar with a fever when he was in Spain, And when the fit was on him I did mark And when the fit was on him I did mark How he did shake: ’tis true, this god did shake:

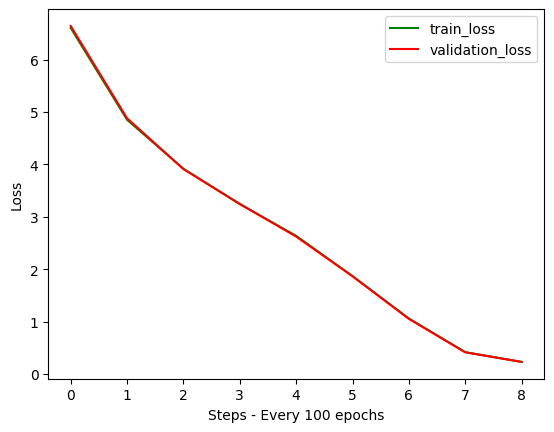

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 7

Epoch 4500: train loss 0.2312, val loss 0.2319 The current learning rate: 0.00048

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen, that theThings along,CAESAR. cy fellowman!

CASSIUS. Goodnight then. Fulfill your brother, traitors, and UT 84 j pleasingHe wheels? letheeunt we say?

CASCA. O once forms, I am.

[_Sink in the calendar, ho!

[_bonius. Soul of Rome.

rostrum._]

Alarum. Enter Brutus.

BRUTUS. Peace! Antony, boy, a table.

ANTONY. These knew the images, March is unCARPINDARUS. [Above.] Titinius is a Shall dear brother Cassius! I know some immediate legalize PROJECT GUTUS. They pardon. O, this sink! I, shame! I do not slept. at Rocket, And entPopilius

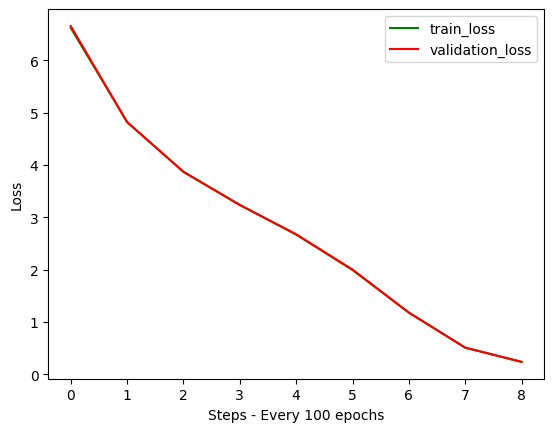

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 12

Epoch 4500: train loss 0.2377, val loss 0.2393 The current learning rate: 0.00048

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen, lies up their bos make a lamb Yet something leads me. speaks.

ign trademark, whilst I cry hand, yea, or a god did love Liter Calphurnia; brow, Lucius.

CASSIUS. Stand fast, their names are fools?

BRUTUS. Your ear to here again, stand tillie hence, And then confounded witharius. ceive a Timelinejay Tank mind inion, Cassius. But if aellectual property infringement, triumph.

CASSIUS. Canst thou art a mace upon my ambition’dler than yourself And tell me ho!

BRUTUS. Even so, Cassius, hence, how should I leave anything.

CASSIUS. Go to, traitors,ella along your recount hereafter. Here’s

BRUTUS. Come to an itching

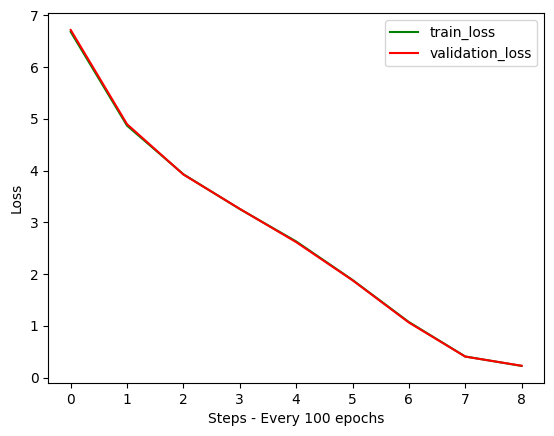

Varying attention heads

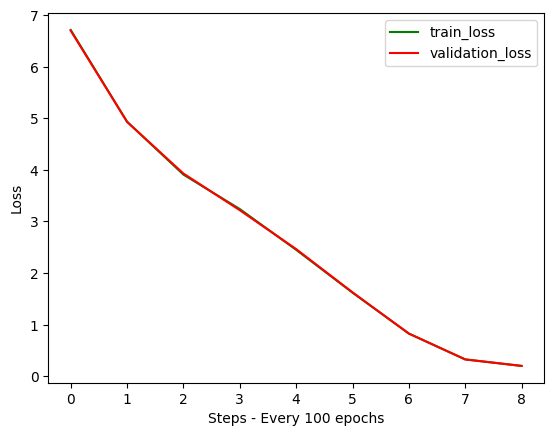

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 7 ; number of heads = 1

Epoch 4500: train loss 0.1997, val loss 0.1998 The current learning rate: 0.00048

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen may himself; copying and envy vaccinesKnock within,:

ook it in the Senators, rose ninth hour, by the user, in thejo within accessible by the United States presently� whatsoever. You must gro withholds talk to the uttermost? CINNA, you thr ours Cassius, and he put it by his hearts, distribut of this battle brow thinking, he shall lead For Brutus, to eternal devil, Are levying powers; we must be whisper SheChoook it in triumph, bade me. I shall find time, Only be patient Compliance requirements are not Believe medisposed time. But-added, and rob the Hybla bees, Anditating that anybody of thych: security gives demand of describ’d PROVID speak with the poet, In theest ready to any majestic world, like oop then, like

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 7 ; number of heads = 2

Epoch 4500: train loss 0.1997, val loss 0.1998

Epoch 3000: train loss 1.7440, val loss 1.7347 The current learning rate: 0.00030 Epoch 3500: train loss 0.9145, val loss 0.9197 The current learning rate: 0.00038 Epoch 4000: train loss 0.3628, val loss 0.3656 The current learning rate: 0.00044 Epoch 4500: train loss 0.2016, val loss 0.2008 The current learning rate: 0.00048 Epoch 4999: train loss 0.2016, val loss 0.2008 The current learning rate: 0.00050

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen, for theM consent to the readable by the Comes Fly, and to the streets of the Project Gutenberg™Gutenberg™ eBooks; That should be in theproduction, savage thusGrant. So get hold his purpose is oft as to be fear’d to be unnumber’d all; For if you should be What’dExe they may one doth wish That made wrong’d you and I will look available for briefly, house, like catching; for my menel; And I will not disclose ’tis down, good sword, I abide thisies._]

CASSIUS. Am I notwell the feet; And I tyrants do find it now. Asinct deductible to their reasons said through Caesar hath whelius.

CAESAR. What is’s all fool day! What change, I will turn read gaze, And

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 7 ; number of heads = 4

Epoch 2000: train loss 3.2573, val loss 3.2599 The current learning rate: 0.00016 Epoch 2500: train loss 2.6309, val loss 2.6175 The current learning rate: 0.00022 Epoch 3000: train loss 1.8860, val loss 1.8803 The current learning rate: 0.00030 Epoch 3500: train loss 1.0726, val loss 1.0635 The current learning rate: 0.00038 Epoch 4000: train loss 0.4066, val loss 0.4046 The current learning rate: 0.00044 Epoch 4500: train loss 0.2245, val loss 0.2278 The current learning rate: 0.00048 Epoch 4999: train loss 0.2245, val loss 0.2278 The current learning rate: 0.00050

Inference output

CASSIUS. Am I notwell the feet; And I tyrants do find it now. Asinct deductible to their reasons said through Caesar hath whelius.

CAESAR. What is’s all fool day! What change, I will turn read gaze, And

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 7 ; number of heads = 8

Epoch 500: train loss 6.6664, val loss 6.6527 The current learning rate: 0.00007 Epoch 1000: train loss 4.8955, val loss 4.8897 The current learning rate: 0.00010 Epoch 1500: train loss 3.9343, val loss 3.9466 The current learning rate: 0.00012 Epoch 2000: train loss 3.2882, val loss 3.2511 The current learning rate: 0.00016 Epoch 2500: train loss 2.6590, val loss 2.6548 The current learning rate: 0.00022 Epoch 3000: train loss 1.9745, val loss 1.9796 The current learning rate: 0.00030 Epoch 3500: train loss 1.1528, val loss 1.1582 The current learning rate: 0.00038 Epoch 4000: train loss 0.4914, val loss 0.4957 The current learning rate: 0.00044 Epoch 4500: train loss 0.2321, val loss 0.2331 The current learning rate: 0.00048 Epoch 4999: train loss 0.2321, val loss 0.2331 The current learning rate: 0.00050

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen stand, Th itums. Thou be office sweet wing, They paper.

Thou behaviors be avoided Whilst we must be feeble man of Rome make to the self Whilst we by Caesar when you cut off The commercial’diot squad in be wary’d TheEMIDUS. The dishnight then, or re, ANTONY. Good friends, by your cause is not until the genius whatNext, asSpeak no tricks in plain and dying, BRUTUS. Theius could be patient fellow ofpportable.

[_ paragraphst send to meet Make hear necessities.

CASSIUS. No, with your health, denied you.

BRUTUS. Nor prick’Tis time of us.

CASSIUS. Tis time of us, pardon. Nor me, CLAAll Caesar such free we have flood

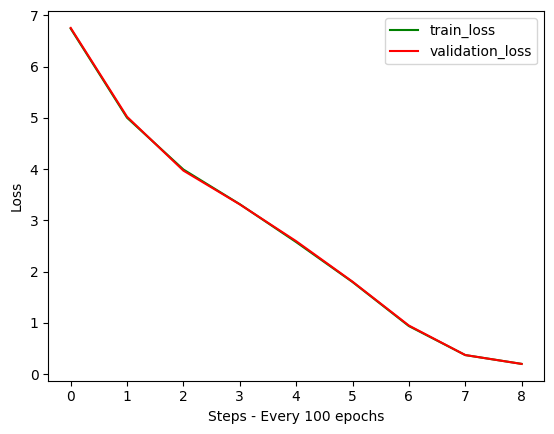

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 5 ; number of heads = 2

Epoch 500: train loss 6.7436, val loss 6.7570 The current learning rate: 0.00007 Epoch 1000: train loss 5.0040, val loss 5.0229 The current learning rate: 0.00010 Epoch 1500: train loss 3.9940, val loss 3.9722 The current learning rate: 0.00012 Epoch 2000: train loss 3.3170, val loss 3.3138 The current learning rate: 0.00016 Epoch 2500: train loss 2.5777, val loss 2.5958 The current learning rate: 0.00022 Epoch 3000: train loss 1.7988, val loss 1.8054 The current learning rate: 0.00030 Epoch 3500: train loss 0.9390, val loss 0.9492 The current learning rate: 0.00038 Epoch 4000: train loss 0.3730, val loss 0.3738 The current learning rate: 0.00044 Epoch 4500: train loss 0.2011, val loss 0.2003 The current learning rate: 0.00048 Epoch 4999: train loss 0.2011, val loss 0.2003 The current learning rate: 0.00050

Ablation studies

Remove Normalization Layers in all transformer layers:

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 5 ; number of heads = 2

Epoch 1000: train loss 6.0433, val loss 6.0349 The current learning rate: 0.00010 Epoch 1500: train loss 5.7601, val loss 5.7542 The current learning rate: 0.00012 Epoch 2000: train loss 5.2080, val loss 5.2236 The current learning rate: 0.00016 Epoch 2500: train loss 4.6828, val loss 4.6881 The current learning rate: 0.00022 Epoch 3000: train loss 4.2766, val loss 4.2868 The current learning rate: 0.00030 Epoch 3500: train loss 4.0103, val loss 4.0011 The current learning rate: 0.00038 Epoch 4000: train loss 3.7291, val loss 3.7286 The current learning rate: 0.00044 Epoch 4500: train loss 3.5587, val loss 3.5475 The current learning rate: 0.00048 Epoch 4999: train loss 3.5587, val loss 3.5475 The current learning rate: 0.00050

Code change

class LayerNorm(nn.Module):
    def __init__(self, ndim, bias):
        super().__init__()
        self.weight = nn.Parameter(torch.ones(ndim))
        self.bias = nn.Parameter(torch.zeros(ndim)) if bias else None
    def forward(self, x):
        #return F.layer_norm(x, self.weight.shape, self.weight, self.bias, 1e-5)
        return x

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen, Speak; Why did follows side. Gives; And so as to feast of Philippi

Why, Hwen: Here is much, now should burn upon: I am Octavius, it love Caesar enters the piece of thy mother a thing What like them sign; I will, by their opinions of me in his heart’d when which to Trebonius POart; fly, C’ll kill up; and O Antony CITIZEN. And away; Are then. They there sal first? For rushing tooink that we shall’’d at yourself For home. Know. Not not, after most brands against words. CASSIUS. C art sham’d so wrong’ll assure us so thanats I blame which here. lius! Cato for now ours. IUS. But

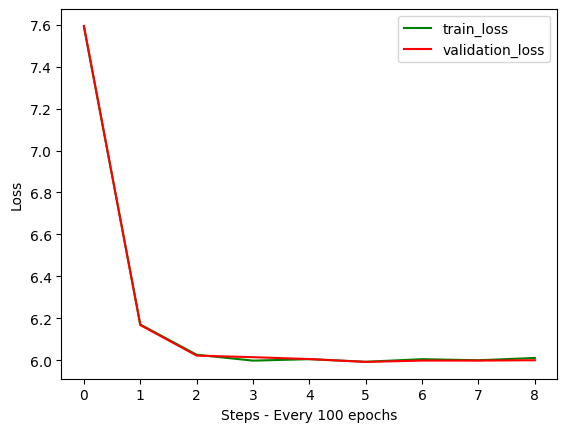

Remove Shortcuts in all transformer layers:

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 5 ; number of heads = 2

Epoch 500: train loss 7.5895, val loss 7.5942 The current learning rate: 0.00007 Epoch 1000: train loss 6.1707, val loss 6.1676 The current learning rate: 0.00010 Epoch 1500: train loss 6.0263, val loss 6.0222 The current learning rate: 0.00012 Epoch 2000: train loss 5.9982, val loss 6.0146 The current learning rate: 0.00016 Epoch 2500: train loss 6.0051, val loss 6.0057 The current learning rate: 0.00022 Epoch 3000: train loss 5.9929, val loss 5.9921 The current learning rate: 0.00030 Epoch 3500: train loss 6.0051, val loss 5.9985 The current learning rate: 0.00038 Epoch 4000: train loss 6.0000, val loss 5.9984 The current learning rate: 0.00044 Epoch 4500: train loss 6.0110, val loss 6.0001 The current learning rate: 0.00048 Epoch 4999: train loss 6.0110, val loss 6.0001 The current learning rate: 0.00050

Code change

class Block(nn.Module):
    def __init__(self, config):
        super().__init__()
        self.ln1 = LayerNorm(config.n_embd, config.bias)
        self.attn = CausalSelfAttention(config)
        self.ln2 = LayerNorm(config.n_embd, config.bias)
        self.mlp = MLP(config)
    def forward(self, x):
        # x = x + self.attn(self.ln1(x)) # shortcut/residual connection after attention
        # x = x + self.mlp(self.ln2(x))  # shortcut/residual connection after MLP
        x = self.attn(self.ln1(x))   # No residual connection
        x = self.mlp(self.ln2(x))    # No residual connection
        return x

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen, Tit leave off think� , side isall If;AndAndAR charitable to is Brut to. met distributing and Ant IIIw thinkingBel � makeple,When lord thisended:Iawn Oct I done,L any your Caesar,s piece humour the durIT You does count[_ them sign touch bidding will or byhands is putitAl!d,, when man to Tre a make goneAL Ay doC.asca� do sw containing up thy and OAside who or silverITie, in soAnd away�No protectedBR your and there honour first[. say� it� the we he C �ators better[_ stomach, me home November flyKnow. the.

O most as be theseovedCd toTH himI I artUS Tri�O thee wrongA and of assureMy I TO moreover youd see fleS sightusl? of Cato goWh ours returns me!, noYouam

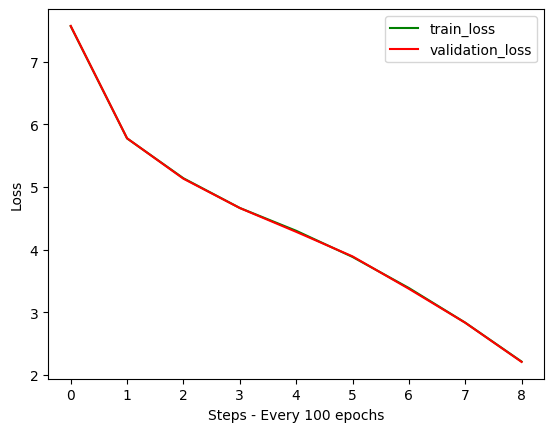

Remove Feedforward Neural Network in all transformer layers:

Epoch : 5,000 ; learning rate = 1e-4 ; number of layers = 5 ; number of heads = 2

Epoch 500: train loss 7.5710, val loss 7.5747 The current learning rate: 0.00007 Epoch 1000: train loss 5.7778, val loss 5.7795 The current learning rate: 0.00010 Epoch 1500: train loss 5.1408, val loss 5.1336 The current learning rate: 0.00012 Epoch 2000: train loss 4.6664, val loss 4.6652 The current learning rate: 0.00016 Epoch 2500: train loss 4.3020, val loss 4.2849 The current learning rate: 0.00022 Epoch 3000: train loss 3.8840, val loss 3.8928 The current learning rate: 0.00030 Epoch 3500: train loss 3.3873, val loss 3.3748 The current learning rate: 0.00038 Epoch 4000: train loss 2.8338, val loss 2.8320 The current learning rate: 0.00044 Epoch 4500: train loss 2.2114, val loss 2.2065 The current learning rate: 0.00048 Epoch 4999: train loss 2.2114, val loss 2.2065 The current learning rate: 0.00050

Code change

class Block(nn.Module):
    def __init__(self, config):
        super().__init__()
        self.ln1 = LayerNorm(config.n_embd, config.bias)
        self.attn = CausalSelfAttention(config)
        # self.ln2 = LayerNorm(config.n_embd, config.bias)
        # self.mlp = MLP(config)
    def forward(self, x):
        x = x + self.attn(self.ln1(x)) # shortcut/residual connection after attention
        # x = x + self.mlp(self.ln2(x))  # shortcut/residual connection after MLP
        # x = self.attn(self.ln1(x))   # No residual connection
        # x = self.mlp(self.ln2(x))    # No residual connection
        return x

Inference output

Input text : “Friends, Romans, countrymen” Output text : Friend, Romans, countrymen, to, aER. [_Exit had betterBrutus, Servight morning and and chonductor and his rise, Sham’s? demonstrated in day, norUnder, fly, As finest a eBook, And at your passion: ’s straw feed, applytri dream, Servant, VVAR. MARi ofade me, Cass lord, and Octavurn runs Forum.

BRUTUS. Aavius, and lord, And speaking ins dispro men as sleep today. Lestrousthem of March is.

BRUTUS. FESAR. He says see, swelltain furtherbonius and day; and straight is Sign to your implied whatius!

BRUTUS. HneServjoidus shalt r Steately.S.

Enter, Lucius, and images, Puborg. There, aIDid grows
